Model List
-
ALL-in-one CPU cooler
TDP 500W -
Remote-type CPU cooler
TDP 500W -
For burn-in test equipment
TDP 4000W class

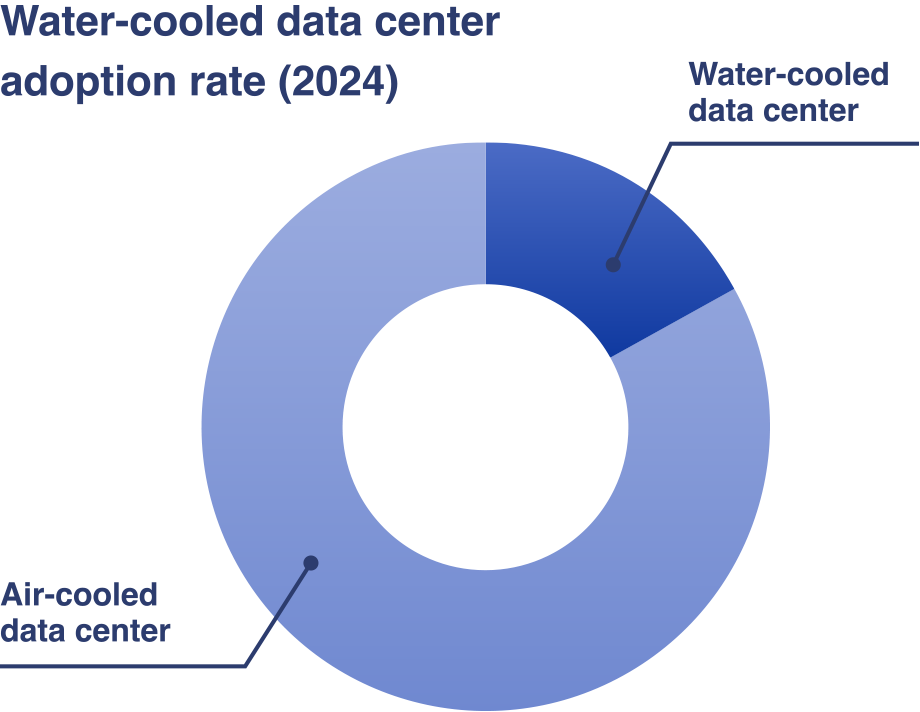

Why Cooling Methods Need to Be Reconsidered Now
As CPU/GPU heat dissipation increases, conventional air cooling is reaching its limits. While liquid cooling is recommended, the hurdles—such as facility requirements and operating costs—make adoption difficult.
Challenges in Deploying Liquid-Cooled Servers
- ① Building water infrastructure and ancillary facilities.
- ②Requiring large-capacity, MW-scale utility contracts.
- ③ Increased operating costs due to water cooling
Strengths of Siphorex
Features of Siphorex
Sumitomo Precision Products’ Two-phase CPU/GPU cooler “Siphorex” uses a closed-loop structure with refrigerant phase change to deliver cooling performance targeting high-TDP applications..
- Supports high TDPApplicable for consideration even in the 1000 W-class and above.
- Lower adoption costNo water-cooling infrastructure, coolant, piping, or pumps required.
- High reliability & long service lifeHermetically sealed aluminum-alloy structure; maintenance-free.
- CustomizationDesigned to match the chassis, layout, and application.

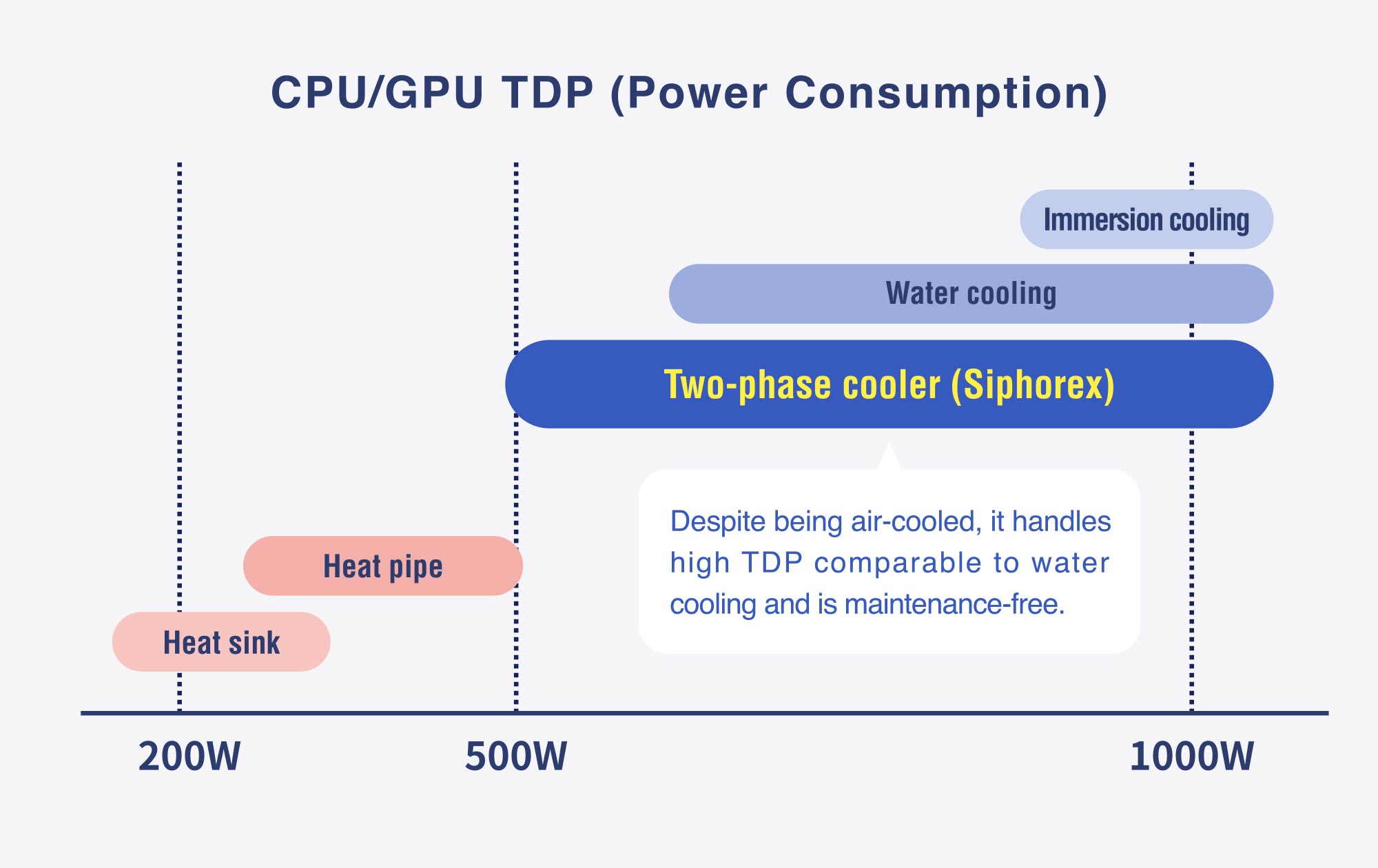

CPU/GPU Cooler TDP and
Application Range
Standard models for CPUs support TDPs of 500–700 W, and GPU models can handle even higher TDPs of 700 W or more. They fill the gap in performance where conventional heat pipe heat sinks (up to around 500 W) cannot meet the requirement.

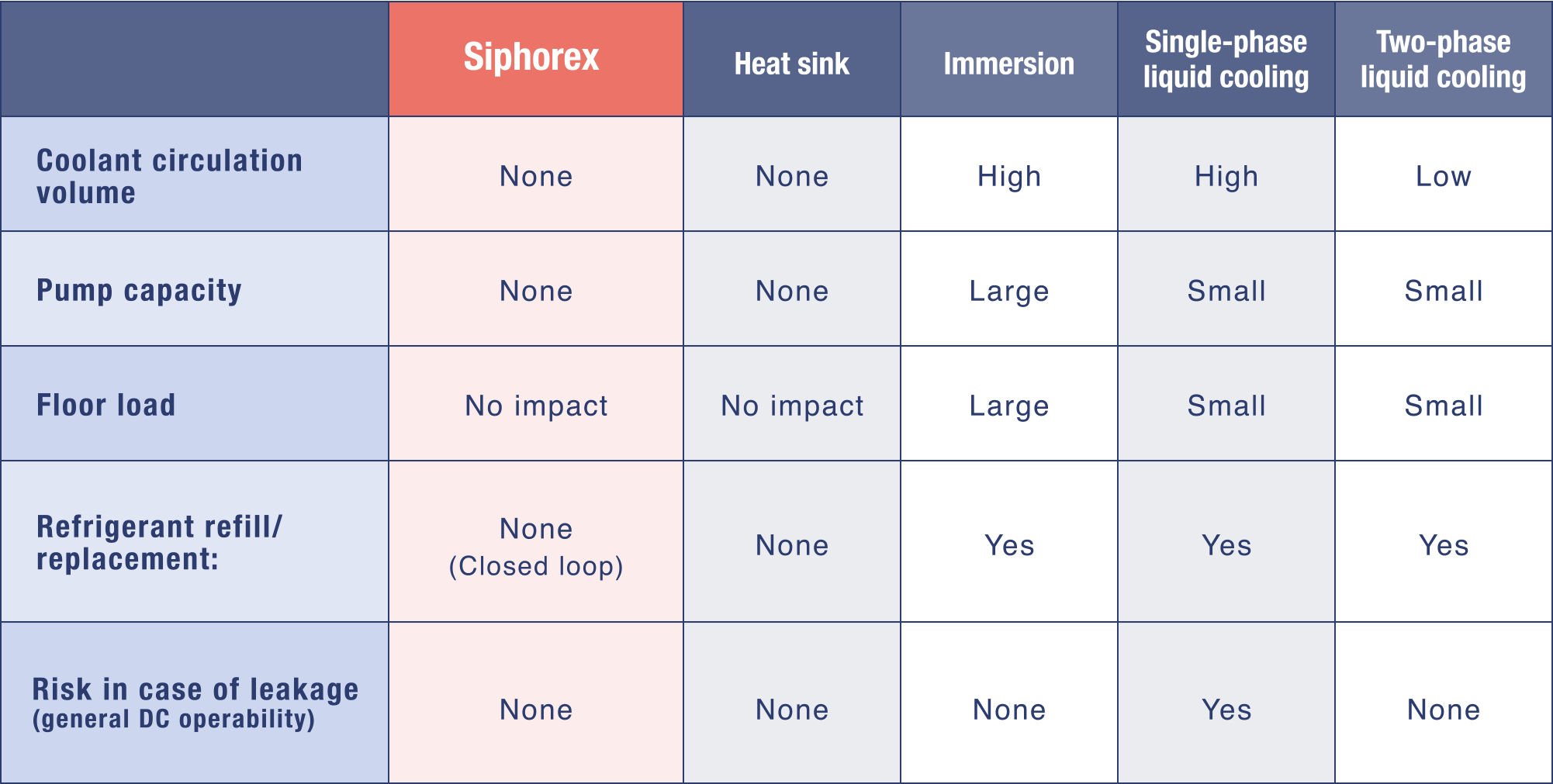

Comparison of Advantages and Disadvantages
by Cooling Method (Liquid Cooling vs. Siphorex)
Siphorex two-phase CPU/GPU coolers for data centers eliminate the need for coolant circulation and pumps, minimizing leakage risks, floor load impacts, and maintenance burdens while handling high heat generation.
Technology and Achievements
Our proprietary technology and
A look at our Achievements
Based on its long-standing track record of supplying heat exchangers and its proprietary manufacturing technology, Sumitomo Precision Products provides products to a wide range of fields through optimal design and customized solutions tailored to specific applications. The company also has extensive delivery experience both in Japan and overseas.
-
Our technology
- Exclusive technology
for plate-fin type heat exchangers - Highly durable and airtight structures achieved
by vacuum brazing technology - Custom design technology options
- Exclusive technology
-
Achievements
- Years of supply experience to bullet
trains and industrial machinery - Top manufacturer of plate-fin type heat exchangers,
specializing in brazing - A solid track record with deliveries
in countries all over the world
- Years of supply experience to bullet

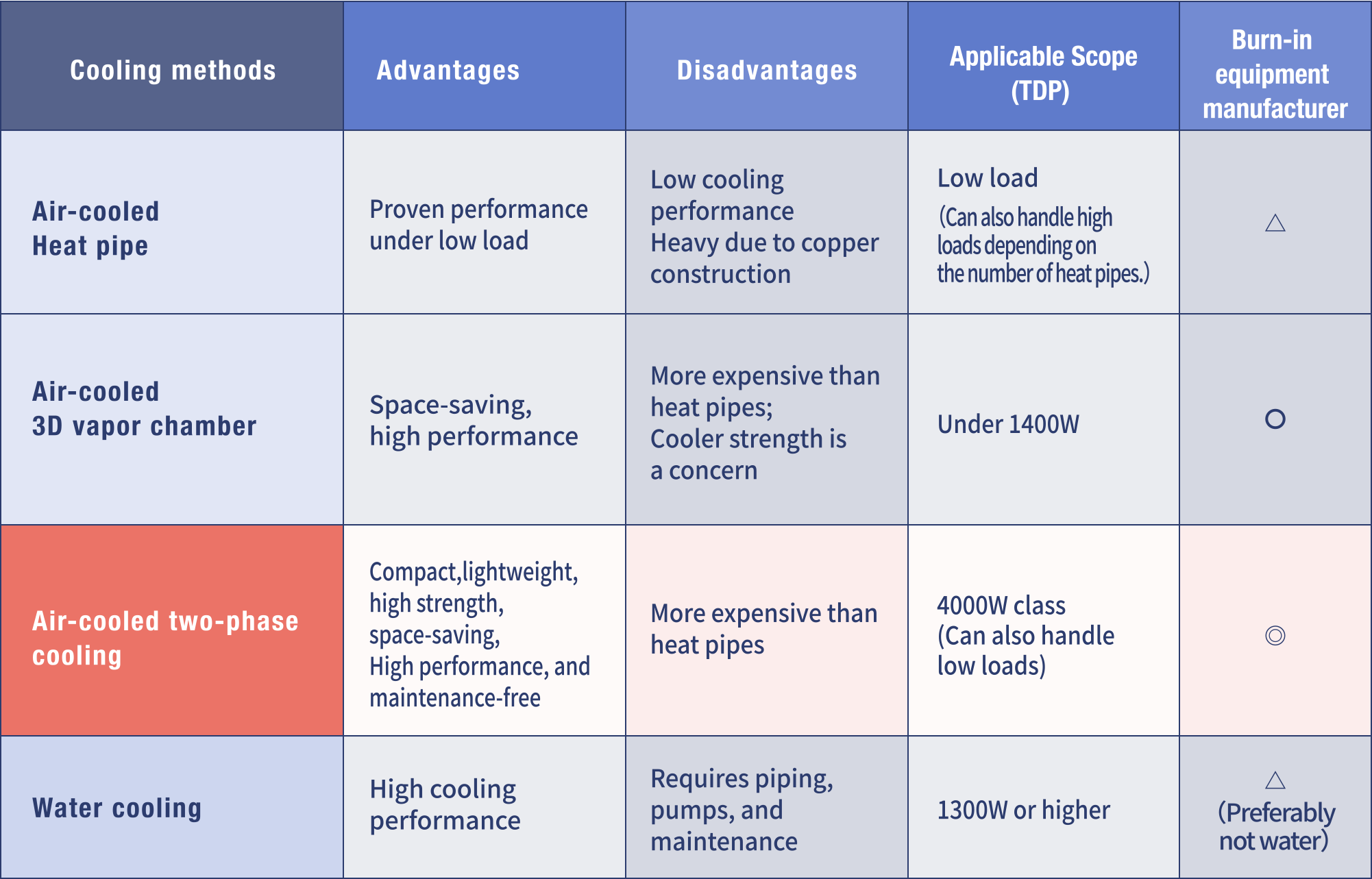

Development to burn-in equipment
Siphorex two-phase CPU/GPU coolers for data centers are suitable for server applications as well as socket cooling for semiconductor burn-in equipment. Custom designs are available for high-heat models.
Siphorex operating principle
Sumitomo Precision Products' Siphorex is a self-circulating "two-phase thermosiphon cooler" (phase-change cooler) that efficiently transfers heat by utilizing the boiling and condensation of refrigerant. It maintains excellent air cooling performance and achieves stable cooling even for high-heat-generating CPUs/GPUs.

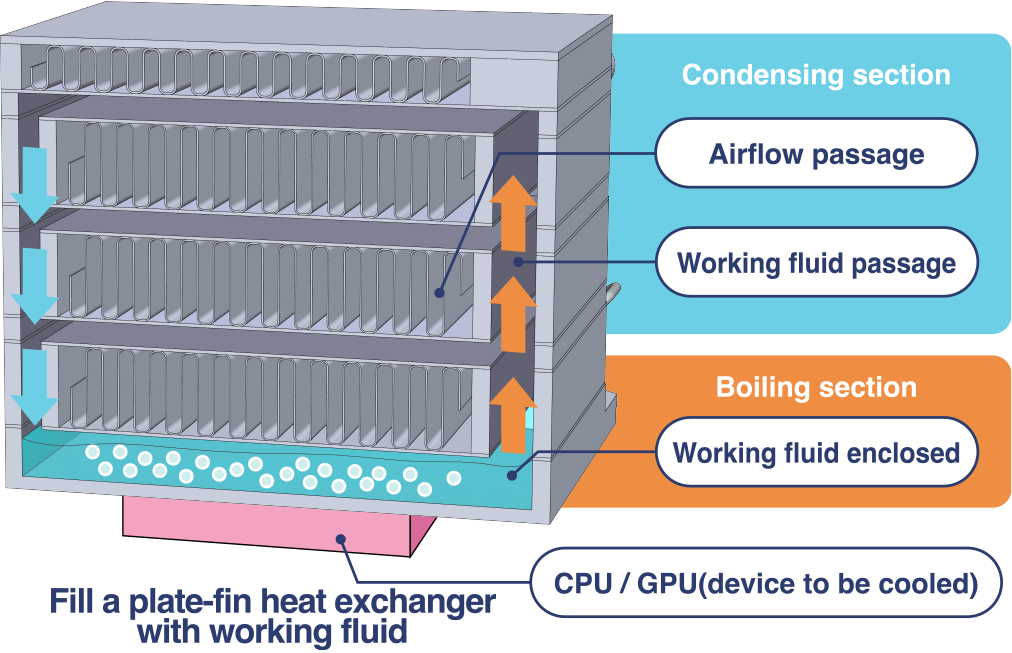

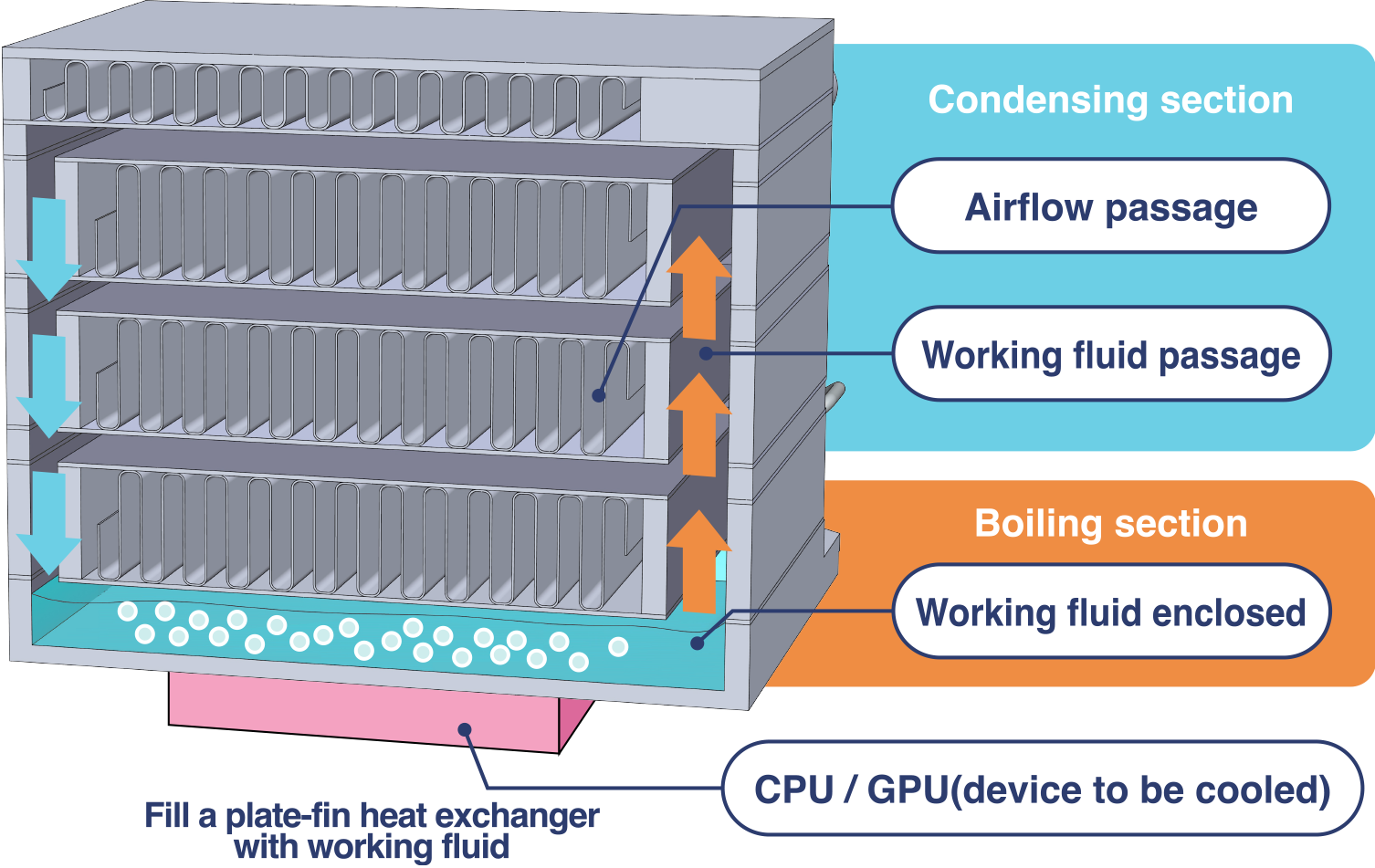

Internal structure
- ① The working fluid in the boiling section absorbs heat and boils.
- ② The vaporized working fluid is cooled in the condensing section and returns to a liquid.
- ③ The liquefied working fluid returns to the boiling section.

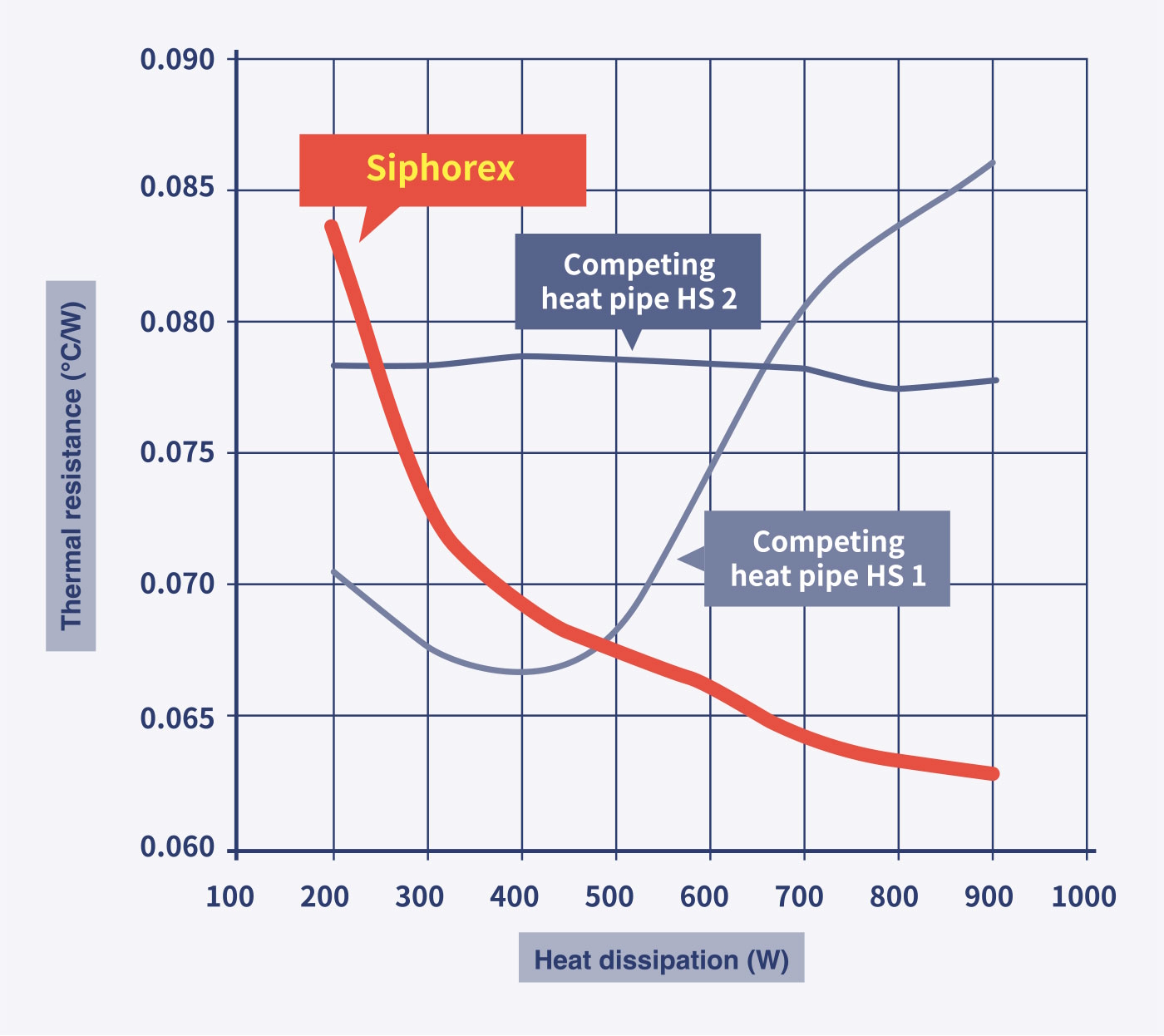

Comparison of thermal resistance characteristics
with heat pipe heat sinks from other companies
Siphorex two-phase CPU/GPU coolers for data centers feature reduced thermal resistance under heavy load, delivering optimal performance in high-heat regions.
Contact us
Please contact us for specifications and custom design options for Siphorex two-phase CPU/GPU coolers for data centers.
