Cold Box

Complete package of brazed aluminum heat exchanger contained in carbon steel casing with structural support etc. SPP can provide not only heat exchanger itself, but design and sell the complete Cold Box package, this contributes to minimizing work and installation space at commissioning site.

イメージ:コールドボックス

What is Cold Box?

Cold box is a complete package of brazed aluminum heat exchanger contained in carbon steel casing with structural support, insulation containment, and protection for the internal equipment. Insulation work of heat exchanger and piping assembly can be easily done by perlite insulation and inside of cold box will be pressurized and purged by dry nitrogen gas. SPP’s cold box can minimize the installation space at commissioning site by providing the complete unit package of heat exchanger and piping assembly. Also, cold box can be easily installed and easy access to connection piping will reduce the installation work at pre-commissioning.

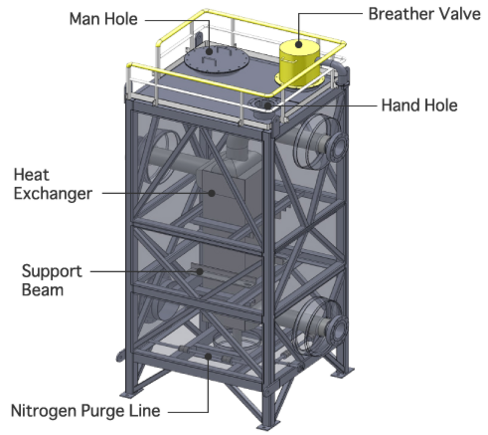

イメージ:コールドボックスとは
Nitrogen Purge System:
  • Purge inlet nozzle
  • Purge Line inside cold box
  • Breather Valve on the roof
  • Emergency Hatch on the Roof(*)
  • Sampling nozzles (*)
  • Low Pressure Gauge (*)

(*) not shown in the sketch

Other Accessories:
  • Anchor Bolt Set
  • Platform and Ladder
  • Drain / Vent Lines
  • Instrument Lines
  • Instruments (Thermocouple, Valve, Orifice, etc)

Track record

SPP’s Cold Boxes were installed at many countries in the world, and SPP has provided more than 120 cold boxes in the past. They are used as follows;

Applications

  • - Air separation
  • - Natural Gas Liquefaction
  • - Methane Production
  • - Ethylene Production
  • - Ethylene Recovery Unit
  • - BOG Condenser
  • - LNG Cold Utilization

etc.

Locations

Japan, South Korea, United States, Canada, Indonesia, Singapore, etc.

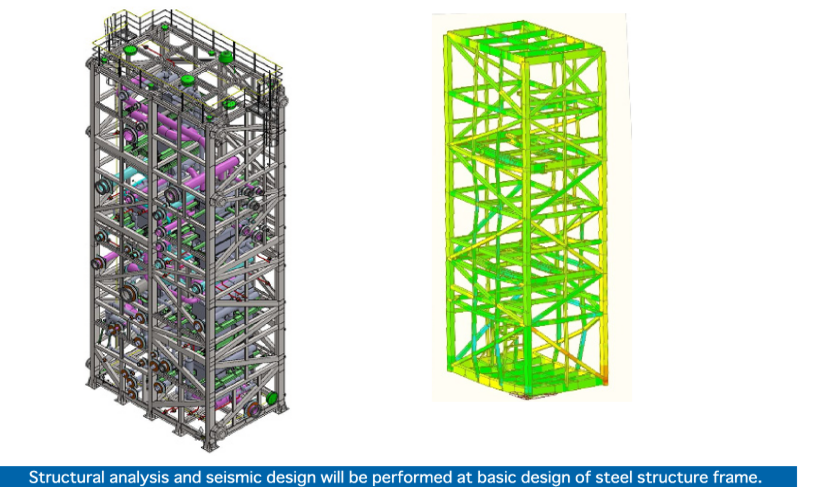

Example of Complete Package Design
イメージ:コールドボックスの完成品の例 イメージ:コールドボックスの完成品の例

鉄架構の基本設計の段階で強度解析・耐震設計を行なっています。

Reference of cold boxes for cryogenic industry
  • イメージ:コールドボックスの納入例1

    7.0m×7.5m×19.0m 210ton

  • イメージ:コールドボックスの納入例2

    6.0m×6.35m×17.5m 127ton

  • イメージ:コールドボックスの納入例3

    5.4m×3.4m×14.5m 60ton
