Various heat exchangers in energy market

Power device cooler

By advancing our technology for brazing plate-fin heat exchanger. Comparing to well-know products, SUMITOMO PRECISION PRODUCTS's coolers show high performance for your power devices. Our products are basically custom-made, and optimized for your use.

イメージ:パワーデバイスクーラー

Line-up of SUMITOMO PRECISION PRODUCTS's power device cooler

liquid cooling イメージ:コールドプレート(水冷ヒートシンク) Cold Plate
(with brazed corrugated fin)

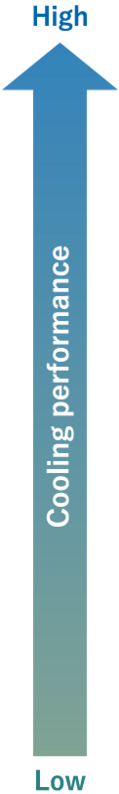

冷却性能
Air cooling イメージ:相変化型ヒートシンク“サイフォレックス®” 2 phase cooler "SIPHOREX®"
Air cooling イメージ:板材ろう付け型ヒートシンク(ヒートパイプ内蔵可) Plate Brazed type Heat Sink (with embedded heat pipe option)
イメージ:コルゲートフィンろう付け型ヒートシンク Corrugate fin brazed type Heat Sink

Cold plate, with brazed corrugated fin

SUMITOMO PRECISION PRODUCTS's cold plate is made by our own technology of plate-fin structure. Due to high density corrugated fins by press forming are brazed inside liquid passage, significant performance (i.e. low heat resistance) is achieved.

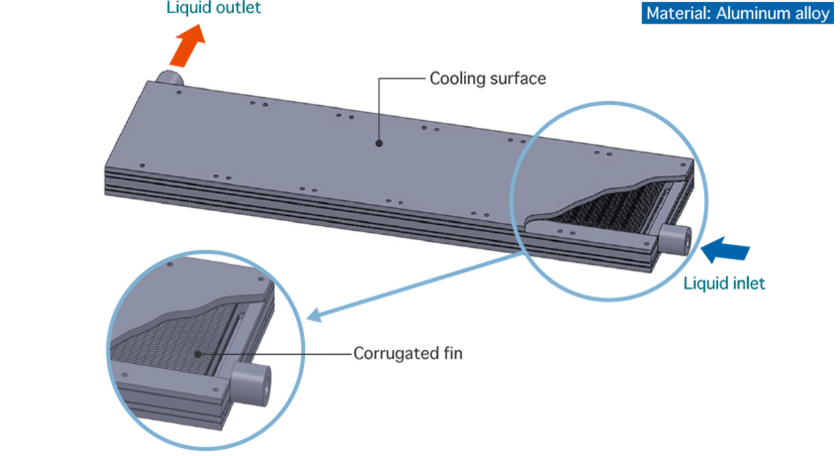

Structure
イメージ:コールドプレート(水冷ヒートシンク)の構造
Features
・Low heat resistance, Optimum design
  • Selection of optimum corrugated fins to fit your requirement.
  • High density corrugated fins realizes low heat resistance and compact cooling system.
  • イメージ:プレーン型

    Plain type

  • イメージ:パーホレート型

    Perforated type

  • イメージ:セレート型

    Serrated type

低圧力損失 高性能
・Flexibility in design
  • Large size available (Max: 1.3*1.8m)
  • Liquid / water passage is designed to fit your requirement, for size, arrangement, and required cooling performance.
  • Double side component attachment is available.                                                                        Thermal performance can be evaluated with both numerical simulation and experiment of actual products.
Benefit of our Cold plate

By SUMITOMO PRECISION PRODUCTS's cold plate, you can reduce your initial cost and maintenance cost within total system.
Due to high density corrugated fins by press forming are brazed inside liquid passage, comparing to extrusion or serpentine single channel type, lower heat resistance is achieved. (Rθ≦5 - 2K/kW) If cold plate has higher thermal performance (i.e. low heat resistance), circulated fluid temperature can be higher. It makes easier to release heat to ambient, and it means your radiators, fans, chiller, etc. can be smaller.

SUMITOMO PRECISION PRODUCTS

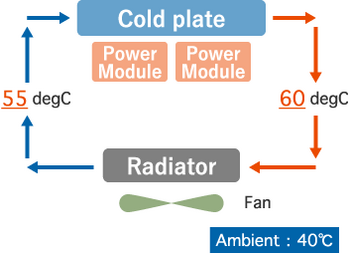

イメージ:弊社製コールドプレート

Radiator and fan can be downsized by higher performance of cold plate. Our product contributes to lower cost, and should read compactness in total cooling system.

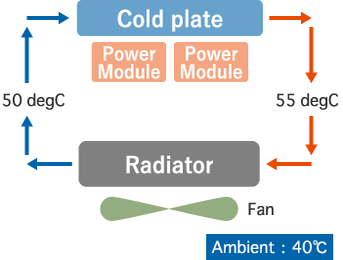

Typical other products
イメージ:一般的な他社製品

2 phase cooler "SIPHOREX®"

"SIPHOREX®" is air cooling solution with 2 phase phenomenon, which has better performance than classical heat sink or heat pipe cooler. Refrigerant is enclosed inside of brazed plate-fin heat exchanger and components are cooled by principal of thermo-siphon. This is a medium solution between liquid cooling and air cooling for electronic device cooling. It has cooling capacity similar to liquid cooling, but it still result in simple system configuration like air cooling.

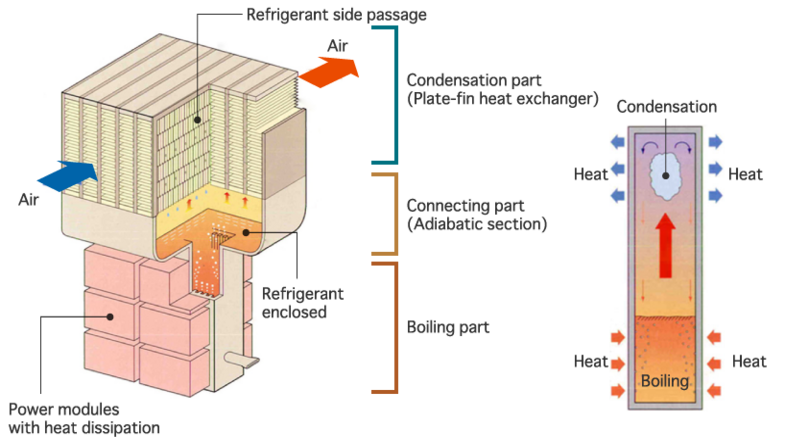

Structure
イメージ:サイフォレックス®の構造
Features of "SIPHOREX®"
・Compact, Lightweight
Plate-fin structured radiation (condensation) part enables compact, lightweight cooling system.
・ΔT between air and modules can be smaller than air cooling
Since boiling part is filled with uniform temperature liquid, In case heat from modules are (e.g. IGBTs) the same; -> Temperature distribution on every component becomes almost uniform. Even though in case heat from each modules are different; -> Temperature distribution on cooling surface and ΔT between air and modules become much smaller than heat sink.
・Devices with "high heat density" or "heat spot" can be cooled

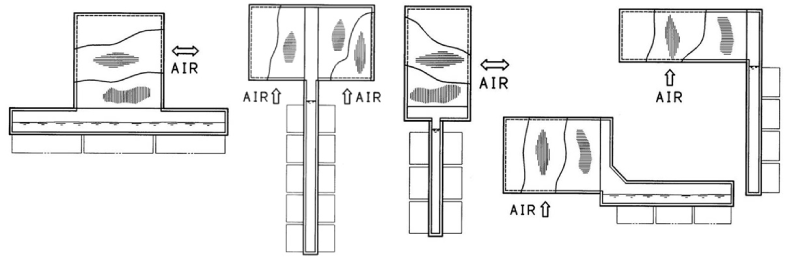

・Flexibility in design
イメージ:サイフォレックスは設計の自由度が高い

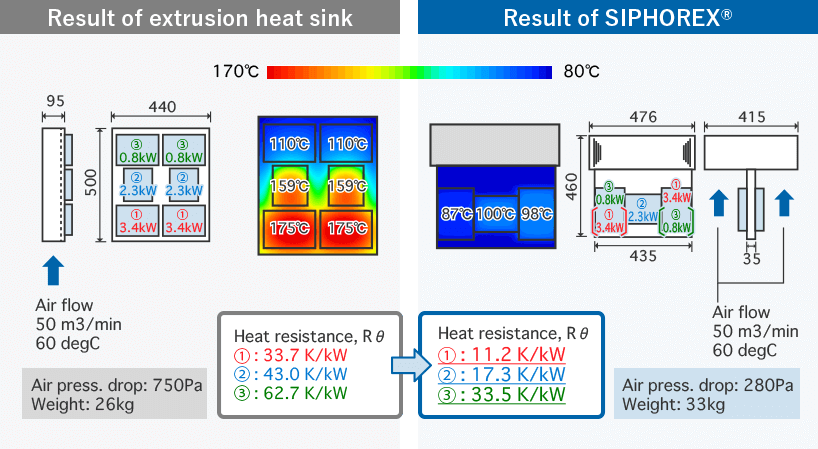

"SIPHOREX®" vs. Heat sink
Calculation condition

・Air flow condition

  • 50 m3/min
  • 60 °C

・Heat dissipation from each components:

  • ①:3.4kW×2
  • ②:2.3kW×2
  • ③:0.8kW×2
  • Total Heat dissipation: 13kW
イメージ:ヒートシンクとの比較
イメージ:押出型材ヒートシンクでの結果と“サイフォレックス®”での結果

SIPHOREX® achieves more than half Rθ.

Main benefits of "SIPHOREX®"
・If you are using or considering air cooling...
  • Heat form modules can be increased.
  • ΔT between air and modules can be smaller.
  • Lower air flow is required, and it results in lower blower energy consumption and lower noise.
・If you are using or considering liquid cooling...
  • No pump, No piping, simple system configuration
  • No risk of water leakage.
  • Easier maintenance.
イメージ:縦型サイフォレックス

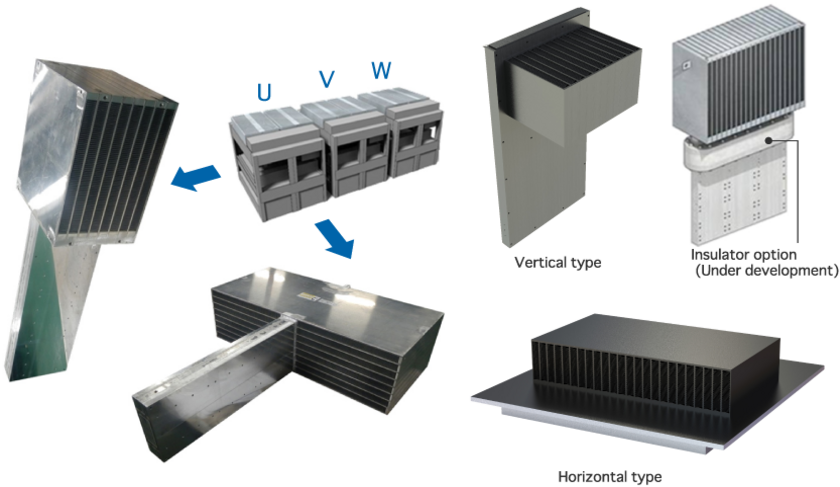

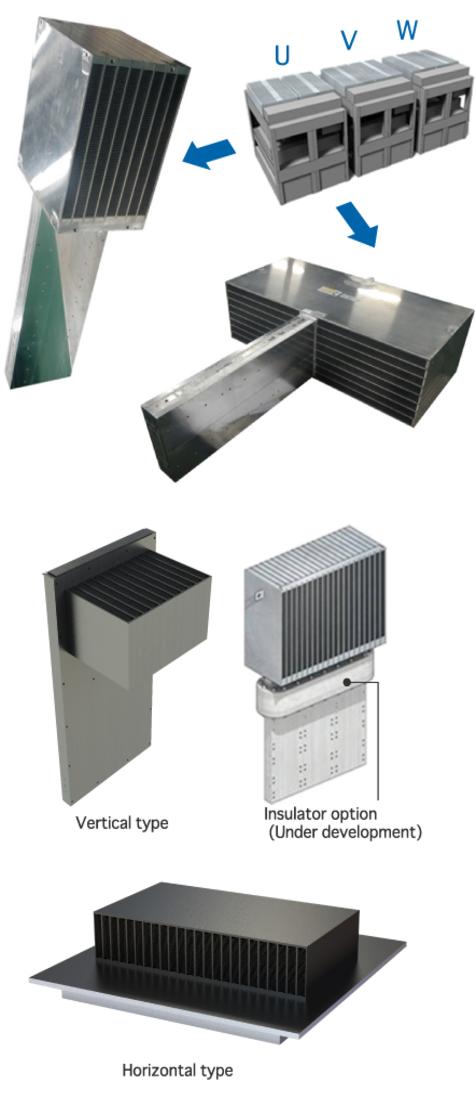

Application example of "SIPHOREX®"

"SIPHOREX®" is used for IGBT cooling of frequency invertors.

イメージ:サイフォレックス®の導入例 イメージ:サイフォレックス®の導入例

Heat sink, with large size, high density and thin walled fin

SUMITOMO PRECISION PRODUCTS's Aluminum heat sink is made by pressed fin forming and brazing technology. Our heat sink is custom-made, and optimum design is proposed. Features

Features
  • ・Small fin pitch, various heights is possible.
  • ・Large size available (Max. 1.3m by 1.8m plane)
  • ・Heat transfer enhancement processing to fins is possible.
  • ・Heat pipe can be embedded in base plate, for improving heat dissipation.

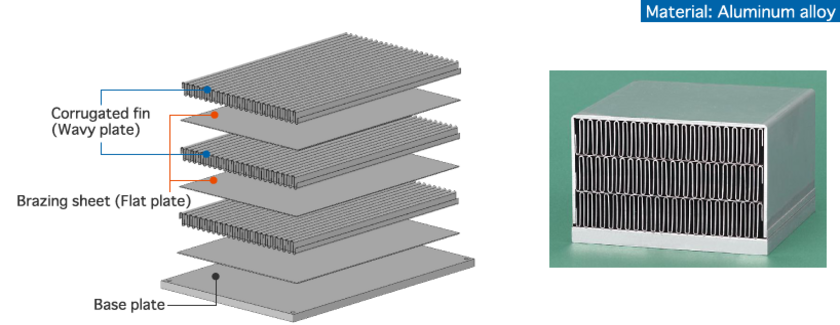

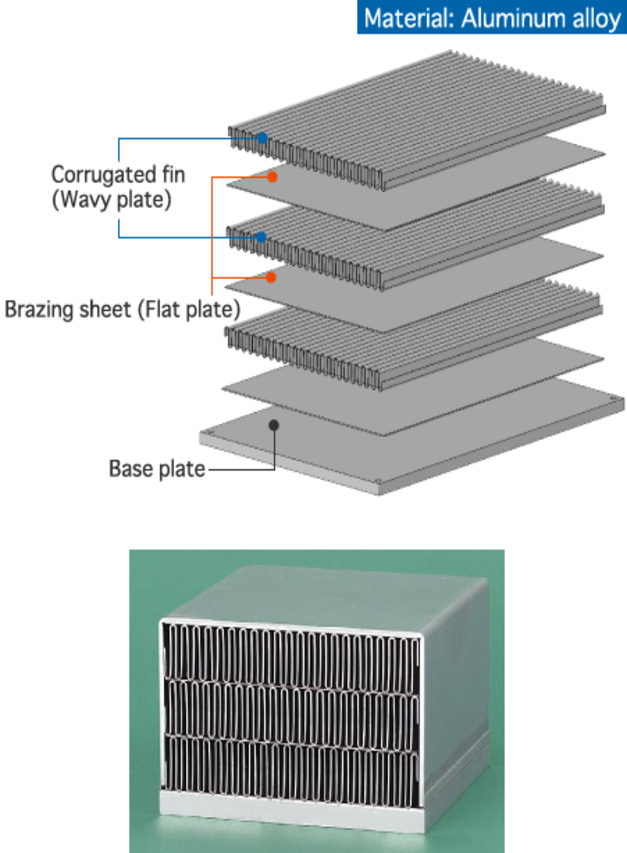

Corrugate fin brazed type
イメージ:コルゲートフィンろう付け型 イメージ:コルゲートフィンろう付け型

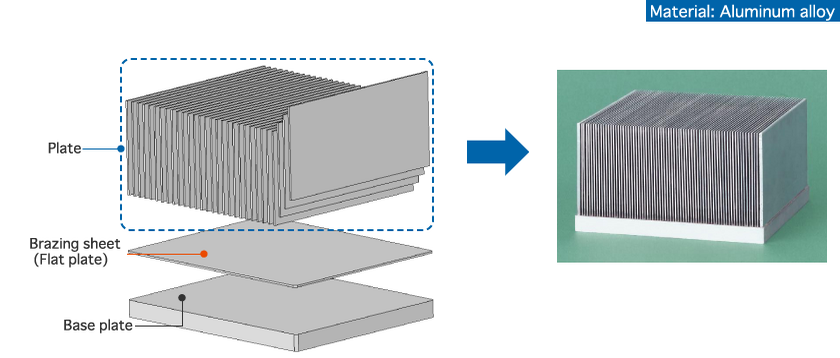

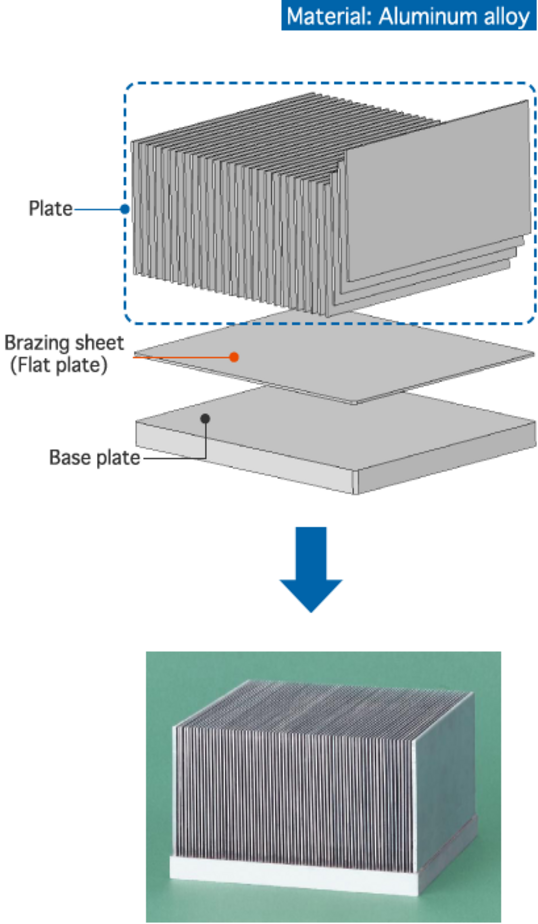

Plate brazed type
イメージ:板材ろう付け型 イメージ:板材ろう付け型
    イメージ:使用例:電気機関車用IGBT 冷却用途
    Application example: IGBT cooler for electric locomotive
    イメージ:使用例:都市間列車インバーター冷却用
    Application example: IGBT cooler for inter city train
About brazing sheet....
イメージ:ブレージングシートについて

In case of Aluminum, filler metal is cladded onto and integrated with the brazing sheet .Filler metal has lower melting point than core material. By heating stacked core to temperature that do not melt core material but melts filler metal, the core is bonded.

Embedded heat pipe
イメージ:ヒートパイプ内蔵型ヒートシンク

Embedded heat pipe in base plate can improve temperature distribution, and heat sink can be compact and light weight.
