Various heat exchangers in energy market

Plate-Fin Heat Exchanger,
"SUMALEX®"

Our heat exchangers composes of corrugated fin and separation plate which are stacked and brazed. Comparing to the other type of heat exchangers, by enlarged heat transfer area , this type of heat exchanger becomes more compact and lighter. We can produce from large to small heat exchanger, and take flexible material choices, such as aluminum alloy, and stainless steel etc.

イメージ:プレートフィン型熱交換器

Structure

SPP's plate-fin heat exchanger "SUMALEX®" is made by stacking brazing sheet (flat plate) and corrugated fin (wavy plate). Each layer is individual passage.

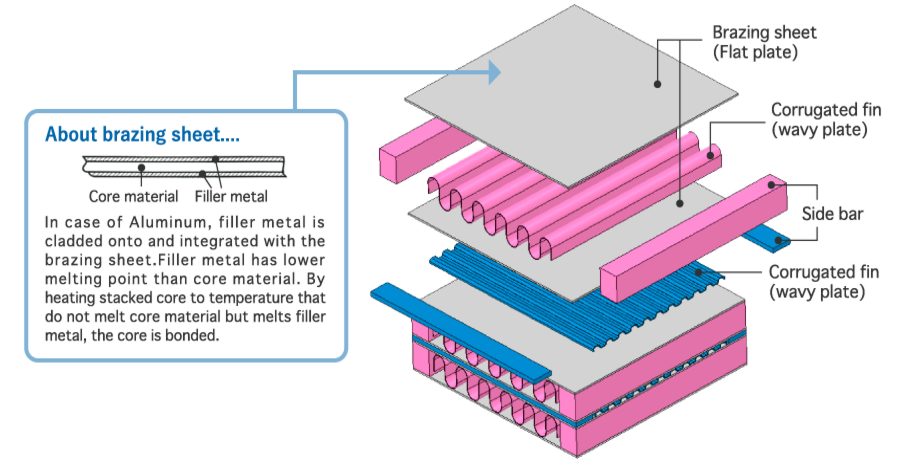

Basic Structure
イメージ:プレートフィン型熱交換器

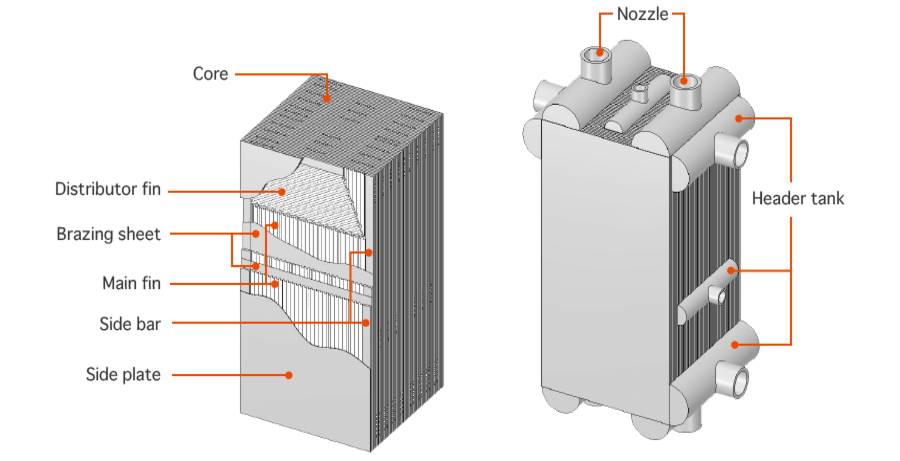

Product Structure
イメージ:プレートフィン型熱交換器

Features

Plate-fin heat exchanger "SUMALEX®" has the following features;

1Light weight, Compact, and High thermal performance, comparing to the other type of heat exchangers.

Comparing to the other type of heat exchangers, if plate-fin type is applied, your heat exchanger can achieve compact and light weight in general, because heat transfer area is enlarged and heat transfer area per volume becomes large. Especially, in case of gas-gas heat exchange process, heat exchanger which is designed by enlarged heat transfer area becomes significantly compact and light weight.

Model case: Comparison between "Shell & Tube" and "Plate-fin"

In comparison with Shell & Tube heat exchangers, the following benefits are expected for our Plate-fin heat exchangers;

  • Smaller installation space.
  • Simplification of support structure for heat exchanger
  • Reduction in power consumption of compressor
Shell & Tube Plate-Fin
Gas outlet temperature 40°C
(Cooling water 32℃)
34°C
(Cooling water 32℃)
Main unit dimension 400Ø×2400 350×440×900
Main unit volume 0.30m³ 0.14m³
Temperature difference : 2 ℃
Running cost improvement: 1%
Heat Exchanger volume reduction:60%
イメージ:シェル&チューブ型からプレートフィン型熱交換器の導入モデルケース
2Best selection from various fin type.

For accommodating various customer requests, we assort about 300 kinds of corrugated fin, and offer most suitable selection for customer specification.

Fin shape
  • イメージ:プレーン型

    Plain type

  • イメージ:パーホレート型

    Perforated type

  • イメージ:ヘリンボーン型

    Herringbone type

  • イメージ:ルーバー型

    Louvered type

  • イメージ:セレート型

    Serrated type

Fin dimension
イメージ:寸法
Min. Max.
Height H 2mm 25mm
Pitch P 0.9mm 8.5mm
Thickness t 0.1mm 0.6mm
3Multi fluid heat exchange

Due to structure of plate-fin type, multi fluid heat exchange is possible. You can reduce piping and installation space. (Up to 15 fluid possible)

Passage arrangement - 4 fluid counter flow
イメージ:通路構成〜4流体向流型
4Superior air-tightness / durability

Corrugated fins are all brazed with brazing sheets, and configure integrated structure. They are not only for enlarging heat transfer area, but for withstanding high internal pressure, and provide superior durability. Production with this our original brazing technology and argon-arc-welding provides sound mechanical reliability and air-tightness.

5Quality, Reliability

"SUMALEX®" are widely used in the world. We have many experiences for applying many kinds of international / local codes. Also, our technology is internationally verified by various quality certifications.

Applicable codes

  • - ASME BPVC Sec. VIII
  • - European PED
  • -  Membership of ALPEMA (Brazed Aluminum Plate-Fin Heat Exchanger Manufacturer's Association)
  • - Japanese pressure vessel codes
  • - EN 15085
  • - Codes of ship classification society

etc.

Quality certifications

  • - ISO 9001
  • - ASME (U Certification Mark)
  • - NBIC (R-stamp)
  • - Korean MA (Manufacture Approval)
  • - ClassNK (Pressure Vessels, groupe 1)

etc.

Worldwide track records

  • ・日本、韓国、 インド、タイ、マレーシア、シンガポールを含むアジア各国
  • - North, Central, South America, including Canada, USA, Brazil
  • - West and East Europe, including UK, France, Spain, Germany, Poland
  • - CIS Counties, including Russia, Turkmenistan
  • - Middle East, Africa

etc.

6Variety of materials selection

Depending on fluids or the other conditions, we can propose appropriate material, not only aluminum alloy, but also stainless steel, nickel alloy, and titanium alloy.。

Example for use
  • イメージ:空気分離装置用熱交換器(アルミニウム合金製)

    Plate-fin heat exchanger for air separation (Aluminum alloy)

  • イメージ:産業機械用オイルクーラー(アルミニウム合金製)

    Oil cooler for industrial machine
    (Aluminum alloy)

  • イメージ:新幹線用オイルクーラー(アルミニウム合金製)

    Oil cooler for high speed train
    (Aluminum alloy)

  • イメージ:燃料電池用熱交換器(ステンレス鋼製)

    Heat exchanger for fuel cell
    (Stainless steel)

  • イメージ:プラント用9流体熱交換器(ステンレス鋼製)

    9 fluid Heat exchanger for plant
    (Stainless steel)

  • イメージ:プラント用高圧熱交換器(ステンレス鋼製)

    High pressure heat exchanger for plant
    (Stainless steel)

  • イメージ:ガスタービン再生器(ステンレス鋼製)

    Gas turbine recuperator
    (Stainless steel)
