Coolant pump equipped with a motor that complies with overseas high-efficiency regulations
- Coolant pump equipped with a motor that complies with overseas high-efficiency regulations
Pump equipped with a motor that complies with overseas high-efficiency regulations
-
High-pressure coolant pump CX
-
High-pressure coolant pump CQTM
-
High-pressure coolant pump E3P
Our lineup includes a variety of highly efficient, standard-compliant products that comply with international standards.
<Standard support>
Japan: Top runner in regulatory efficiency
Europe: IE3 efficiency, CE marking
USA: NEMA Premium Efficiency (IE3 Efficiency)
<<Modification Support>>
China: GB3 grade
Other countries (Canada, India, South Korea, Brazil, Taiwan, etc.)
- *Specifications and motor manufacturers may vary depending on the standard, so please contact us for details.
- *Please let us know the destination country when you need it.
Detailed product specifications
Motor specifications (standard)
| Direct connection type (spline connection) | |
|---|---|
| output | 1.5kW, 2.2kW, 4.0kW, 5.5kW, 7.5kW *[E3P] series is only available in 1.5kW, 2.2kW, and 4.0kW |
| Frequency/Voltage | 50Hz/200V 60Hz/200V 60Hz/220V 60Hz/230V *Different voltages are available as options, so please consult us each time. |
| Number of poles | 4P |
*CE is standard.
| Bell housing type (coupling connection) | |
|---|---|
| output | 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW |
| Frequency/Voltage | 50Hz/200V 60Hz/200V 60Hz/220V *Different voltages are available as options, so please consult us each time. |
| Number of poles | 4P |

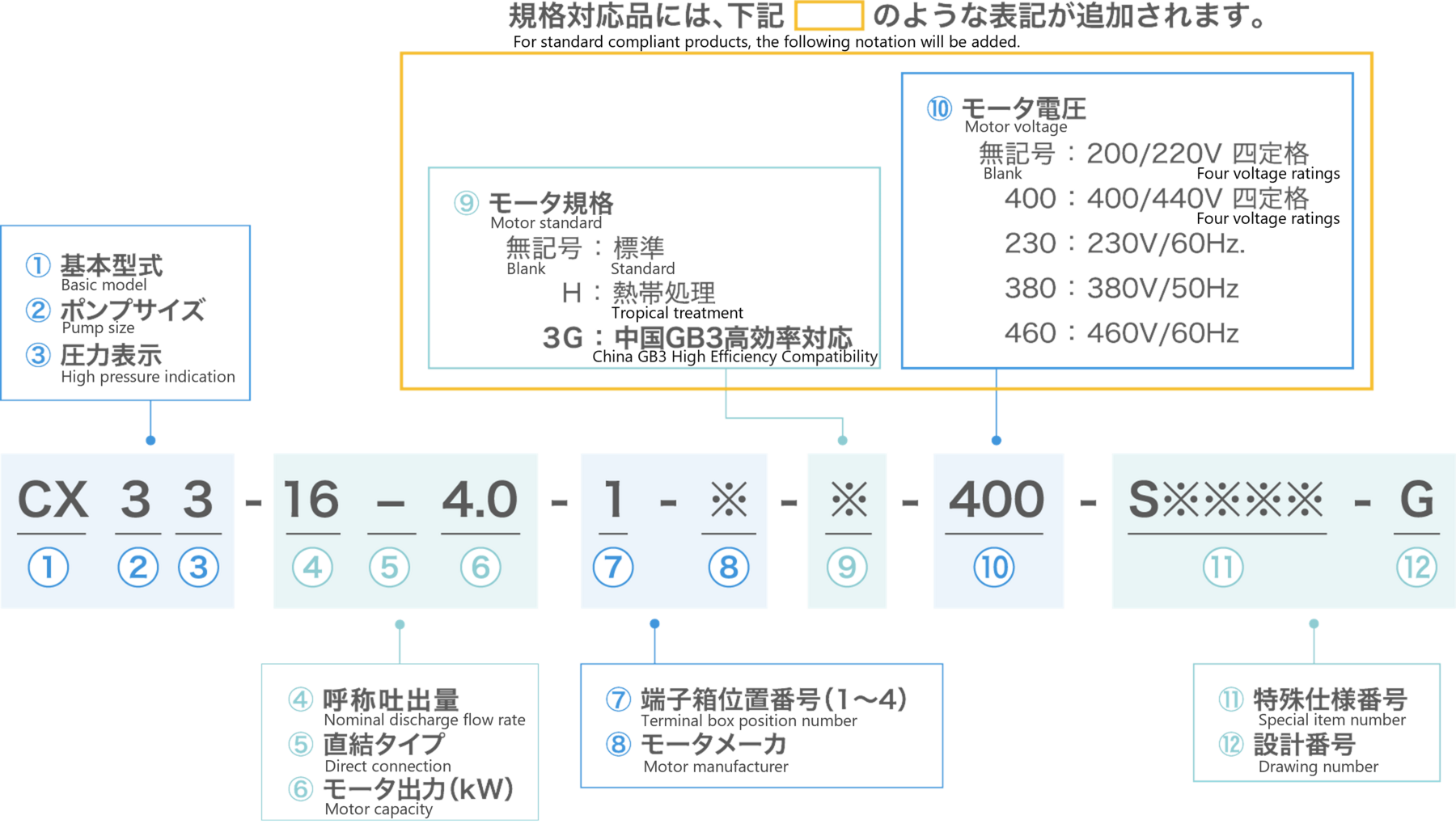

Overseas model number examples
