ASD3 3-port coolant valve

Features
Maximum flow rate of 70L/min (unloaded) despite being 03 size
Valve loss: 0.6 MPa or less
Minimum power consumption 0.55W *1
An energy-saving and compact air-driven coolant valve.
Energy-saving design that is half that of conventional products, effectively reducing CO2 emissions.
*1: DC24V specification
Maximum operating pressure 10MPa *2
Achieves operating pressure that exceeds the limits of coolant valves.
*2: When using 3 ports
There are two types of piping methods: thread type and gasket type.
Gasket types are also available, allowing for greater design freedom.
Two ports can also be used
It can be used in the unloading circuit to control the discharge of coolant.

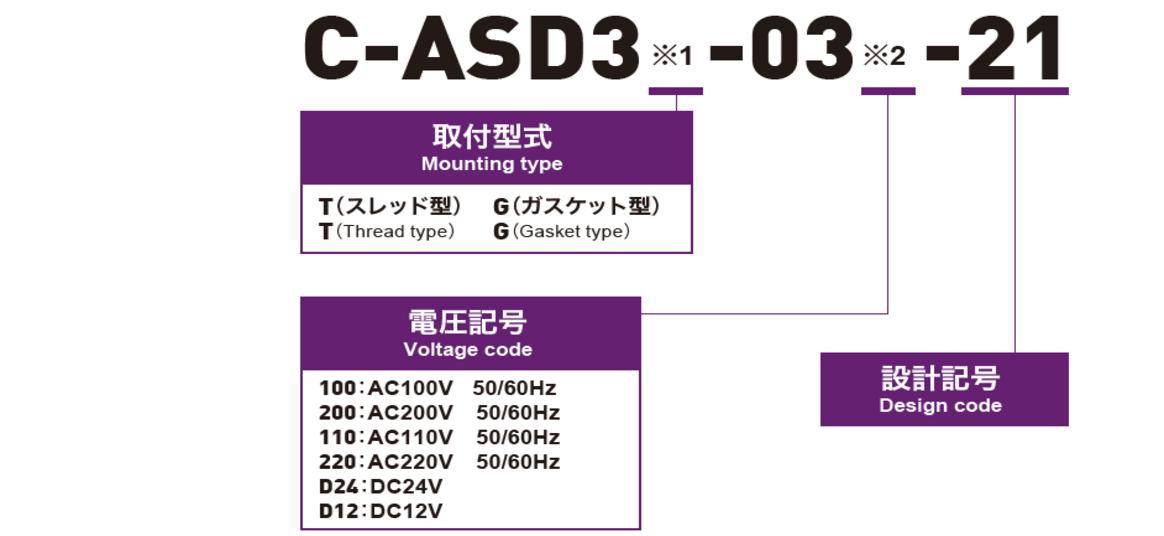

Model number

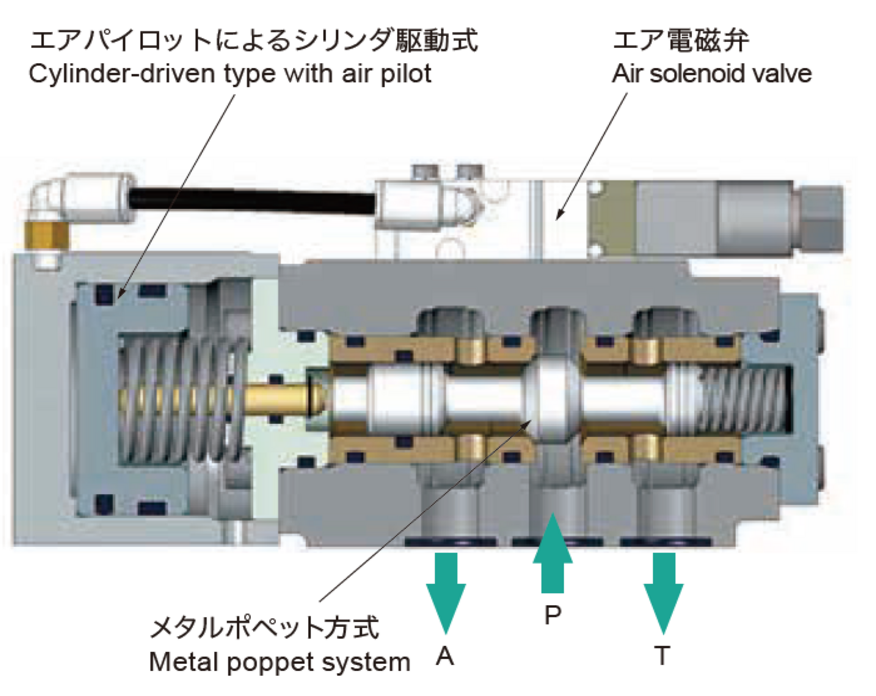

Structure diagram

Specification
3-port valve applications [Unload circuit] |
For nozzle switching or 2-port valve use [B port block] |
|
Pilot Air Pressure | 0.5MPa | 0.5MPa |
Rated Pressure | 9.8MPa | 6.9MPa |
B(T) port allowable pressure | 0.98MPa | 6.9MPa |
maximum flow rate | 70L/min (at no load) Valve loss 0.6MPa or less | |
Mounting position | freely | |
weight | 1.4kg | |
coil | DIN terminal box included | |
Applicable cable sheath outer diameter | Φ3.5~Φ7.0 no polarity |
